$850.25

Dakota Digital 1973-87 Chevy Truck VHX Gauges - Silver Alloy Faces with Red Lighting

Dakota Digital 1973-87 Chevy Truck VHX Gauges - Silver Alloy Faces with Red Lighting
Features:
  • Modern Gauges that Fit in Original or Aftermarket Bezels (Bezels Not Included)
  • Red LED Backlighting
  • Silver Alloy Gauge Faces
  • Backed by Dakota Digital's Limited Lifetime Warranty
Processing...
Item #: VHX-73C-PU-S-R
$895.00 $850.25
Out of Stock
This product is currently out of stock
Please note:
Usually Ships in 16-18 Weeks
Radio Extended Warranty Coverage starts after the included 2-year warranty
Out of Stock
Free Shipping
Description

Dakota Digital’s six-gauge, direct-bolt-in replacement VHX System is designed for 1973-87 Chevy Pickup Trucks. This system comes complete with dedicated solid state sending units and a hardwiring stock kit. This gauge set includes red LED backlighting that gives off a smooth neon vibe and lighted needles to pair with the VHX instrument system. When you initially start-up your VHX system, the needles sync with the VHX analog device. We use premium silver alloy to make the exterior as flawless as the clock itself. Instrument bezels are not included with this purchase.


Product Specs
Speedometer
0-160 MPH
Tachometer
0-8000 RPM
Oil Pressure
0-80 PSI
Water Temp
-100-260 Degrees F
Fuel Level
E, 1/4, 1/2, 3/4, F
Voltmater
9-17 VDC

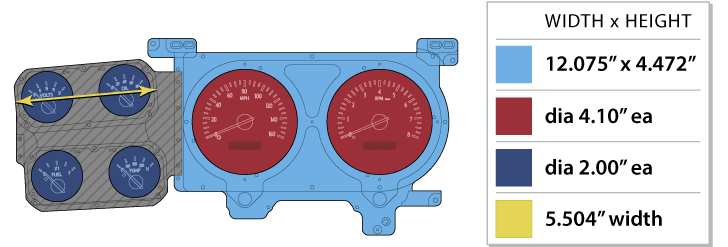

Dakota Digital VHX-73C-PU-S-R Dimensions

Standard Message Center Displays
  • Odometer (One time user settable, Million Mile)
  • Dual (A/B) Trip Meter (0- 9,999.9)
  • Clock (12 hour)
  • Estimated Range/ Miles to Empty
Performance Meters
  • 0- 60 MPH Timer (0- 100 kmh)
  • 1/4 and 1/8 mile time
  • 1/4 and 1/8 mile end speed (trap speed)
  • High speed recall
  • High RPM recall
Built-In Indicators
  • Turn Signals (Left/ Right)
  • High Beam
  • Check Engine
  • Parking Brake
  • Cruise Control (On/ On & Engaged when vehicle is equipped)
  • Gear Position (Optional GSS-3000 sensor required)
  • 4 x 4 (When vehicle is equipped)
  • Wait to Start (When vehicle is equipped)
  • **Not all OEM indicator lamp functions will be replaced.
  • If additional indicators are desired within the new instrument system, consider repurposing any unused indicators to suit your application.
Other Things You May Need

Dakota Digital guagues include the required sensors for oil pressure, water temperatures, and the speedometer. You may not need any additional parts, but consider these below:

GSS-3000: Universal Gear Position Sensor

All Instrument packages contain a gear shift indicator display allowing the transmission gear position (Park, Reverse, etc.) to be shown within the message center. The GSS-3000 accommodates automatic transmissions with 2- 4 forward gears and enjoys a simple and straightforward installation.

DIM-1 Light Dimming Knob

Although Dakota Digital instrument systems are programmable for both day and night intensity levels, the DIM-1 will allow rotary, or on-the-fly brightness adjustment added convenience.

SEN-06-1 - Fuel Level Sensor

Dakota Digital instrument systems are designed to utilize a stock or aftermarket fuel level sensor. If a universal or replacement sensor is desired, the SEN-06-1 is a great choice.

BIM-01-2: ODBII/CAN Interface Module

The BIM-01-2 OBD-II (J1850/CAN) Interface connects directly to the ECM diagnostic port to extract engine and transmission data and supply it to the VFD/ VHX/ HDX/ RTX instrument, making installation a breeze.

BIM-01-2-HLLY: Holley EFI Interface Module

If you have added Holley Terminator, HP, Sniper, or Dominater EFI kit to your vehicle, this module will output a wide variety of info to the VHX-73C-PU-S-R

BIM-17-2: Compass w/ Outside Temperature Module

The Dakota Digital BIM-17-2 makes it easy to add compass and outside air temperature information to your VFD, VHX, HDX, or RTX instrument system. Readouts are visible in the instrument system's message centers; sending units and mounting hardware included.
