Our JL Audio Marine audio package allows you to build the perfect system for your boat using the highest quality marine audio components from JL. This package goes step by step, allowing you to add each component to your boat's audio system, starting with the head unit and finishing with a subwoofer.
The default kit includes 4 speakers and a JL Audio marine grade amplifier. We let you choose between 4 and 6 JL Audio MX650 speakers and you get select whether you want them with, or without the blue LEDs.
Next, tell us whether or not you want to add some tower speakers which are pefect if you do any towing, or if you just want long range sound as the higher mounting point allows your stereo to be heard further away. If you do add tower speakers, we recommend adding JL Audio tower clamps so that you can easily mount them.
If you need to add some bass to your system, you can add a 10" JL Audio MX subwoofer to fill out the bottom end of your stereo. Once you have determined the number of speakers and whether or not you want a subwoofer, you can select the correct amplifier for your application. We offer the JL Audio M series, marine grade amplifiers
as we feel they offer superior sound quality, they are relatively small for their power output, and they are built to withstand the marine environment.
Speakers

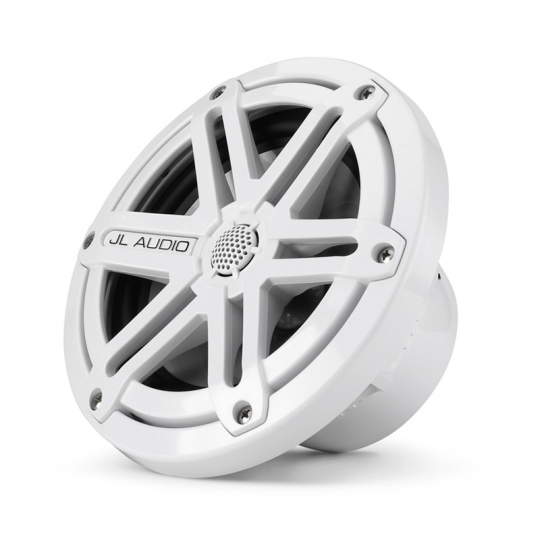

JL Audio MX650
Tweeter Material
.75" Pure Silk Dome
Grille
Gloss White Sport
Features
⬤ Designed for Free-Air or Infinite Baffle Use
⬤ Perfect for mounting in the cockpit or hull of your boat as no enclosure is needed
⬤ The quality you expect from a JL Audio marine grade speaker at an affordable price point
⬤ Recommended 60W RMS power handling, but they work with as low as 20 watts RMS

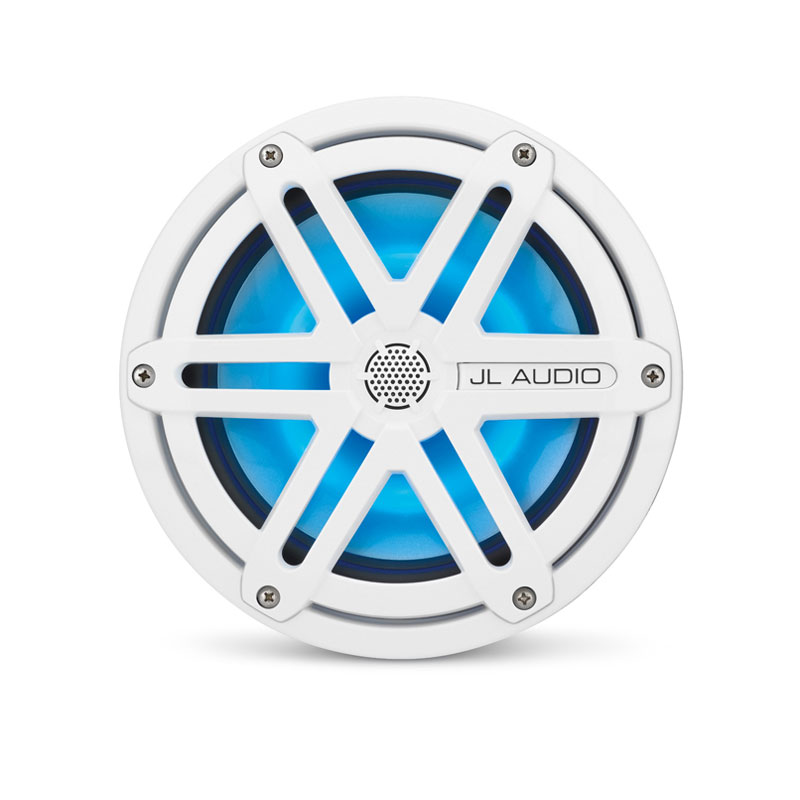

JL Audio MX650 w/ Blue LEDs
Tweeters
.75" Pure Silk Dome
Grille
Gloss White Sport
Features
⬤ Exact same speaker, except there are blue LEDs integrated into the grille that illuminate the cone
JL Audio M Series Amplifiers

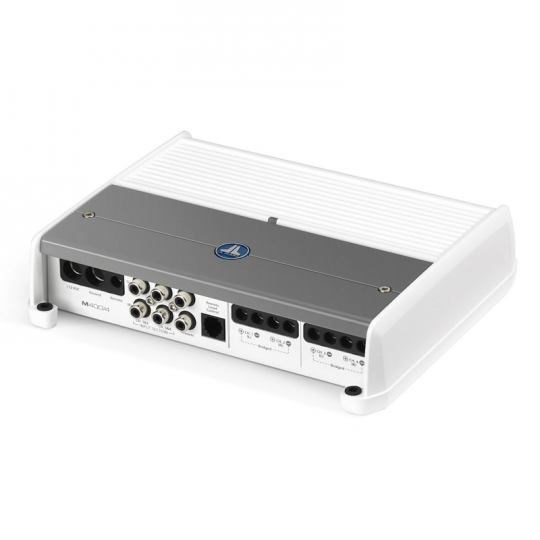

JL Audio M400/4
Power Rating
60Wx4 @ 4 Ohms
90Wx4 @ 2 Ohms
180Wx2 @ 4 Ohms Bridged
Dimensions
Length: 8.52"
Width: 7.09"
Height: 2.05"
Subwoofer
Not Recommended
Features
⬤ 12db/Octave Built In Crossover
⬤ Perfect for powering 4 MX speakers
⬤ Accepts both high and low level inputs
⬤ Marine grade components designed to withstand the elements
⬤ 2/4 channel selectable input.
⬤ Great thermal management. You can drive this thing hard and blast at full blast all day long without any worries

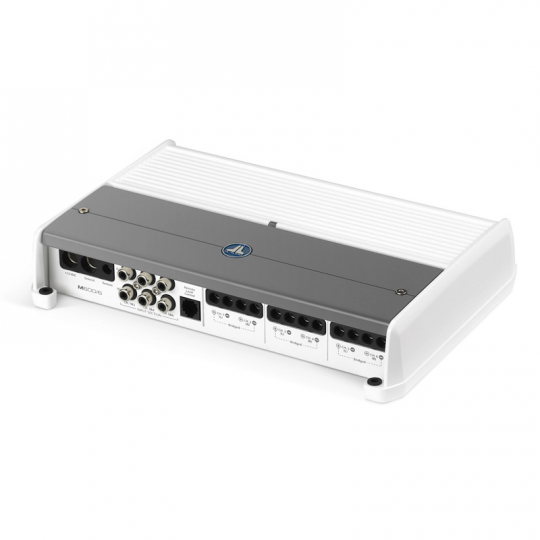

JL Audio M600/6
Power Rating
60x6 @ 4 Ohms
90Wx6 @ 2 Ohms
200Wx3 @ 4 Ohms Bridged
Dimensions
Length: 10.23"
Width: 7.09"
Height: 2.05"
Subwoofer
Yes, if Bridged
Features
⬤ 12db/Octave Built In Crossover
⬤ Perfect for powering 6 MX speakers
⬤ Accepts Both High and Low Level Inputs
⬤ Marine grade components designed to withstand the elements
⬤ 2/4/6 channel selectable input.
⬤ Great thermal management. You can drive this thing hard and blast at full blast all day long without any worries

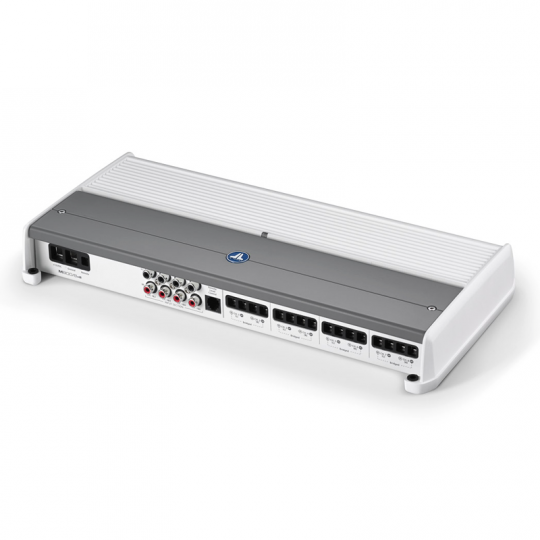

JL Audio M800/8
Power Rating
60Wx8 @ 4 Ohms
90Wx8 @ 2 Ohms
200Wx4 @ 4 Ohms Bridged
Dimensions
Length: 14.73"
Width: 7.09"
Height: 2.05"
Subwoofer
Yes, if Bridged
Features
⬤ 12db/Octave Built In Crossover
⬤ Perfect for powering 8 MX speakers
⬤ Accepts Both High and Low Level Inputs
⬤ Can be bridgeed to power 6 speakers and a subwoofer
⬤ 2/4/6/8 channel selectable input.
⬤ Great thermal management. You can drive this thing hard and blast at full blast all day long without any worries
JL M Series 5 Ch. Amplifiers

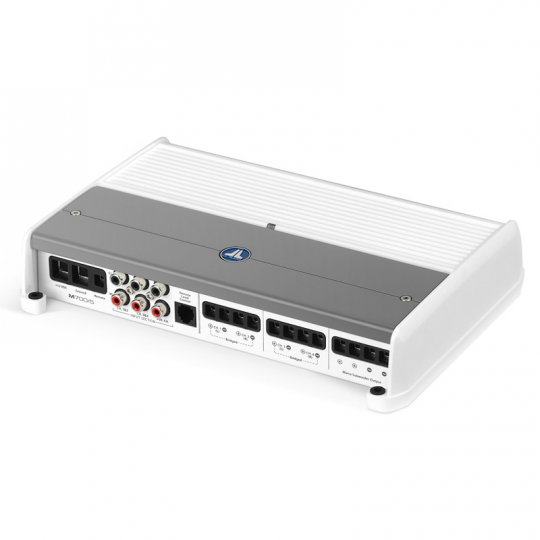

JL Audio M700/5
Power Rating
75Wx4 + 180Wx1 @ 4 Ohms
100Wx4 + 300Wx1 @ 2 Ohms
Dimensions
Length: 10.23"
Width: 7.09"
Height: 2.05"
Subwoofer
Yes
Features
⬤ Perfect for powering 4, 6, or 8 speakers plus a subwoofer
⬤ 12db/octave cross over for full range channels, 12/24 selectable for subwoofer channel
⬤ 50Hz - 5 kHz frequency response full range, 50Hz - 500Hz Subwoofer
⬤ Accepts both high and low level inputs
⬤ 2/4/5 Ch. Selectable Input
⬤ Marine grade components despgined to withstand the elements
⬤ Great thermal management. You can drive this thing hard and play at full blast all day long without any worries

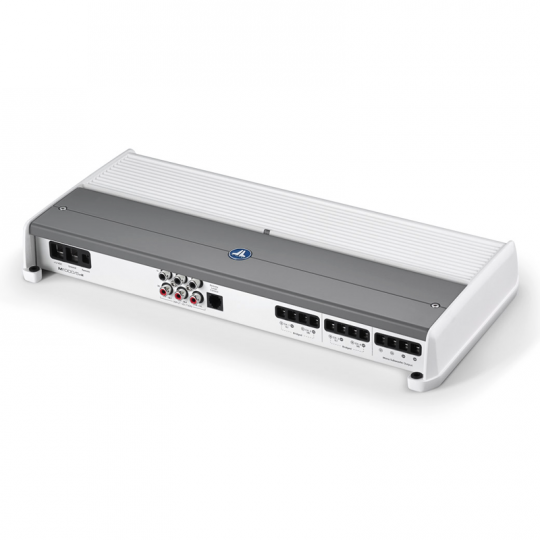

JL Audio M1000/5
Power Rating
75Wx4 + 400Wx1 @ 4 Ohms
100Wx4 + 600Wx1 @ 2 Ohms
Dimensions
Length: 14.73"
Width: 7.09"
Height: 2.05"
Subwoofer
Yes
Features
⬤ Arguable the best marine grade 5 ch. amp available
⬤ Same 4 ch. output as the 700 watt, but this one has more output for the subwoofer
⬤ Recommended if you are running 2 or more subwoofers.
⬤ Cleaner, better power than CX 600
⬤ Perfect for powering 4, 6, or 8 speakers plus 2 or more subwoofers
⬤ 12db/octave cross over for full range channels, 12/24 selectable for subwoofer channel
⬤ 50Hz - 5 kHz frequency response full range, 50Hz - 500Hz Subwoofer
⬤ Accepts both high and low level inputs
⬤ 2/4/5 Ch. Selectable Input
⬤ Marine grade components despgined to withstand the elements
⬤ Great thermal management. You can drive this thing hard and play at full blast all day long without any worries
Subwoofers

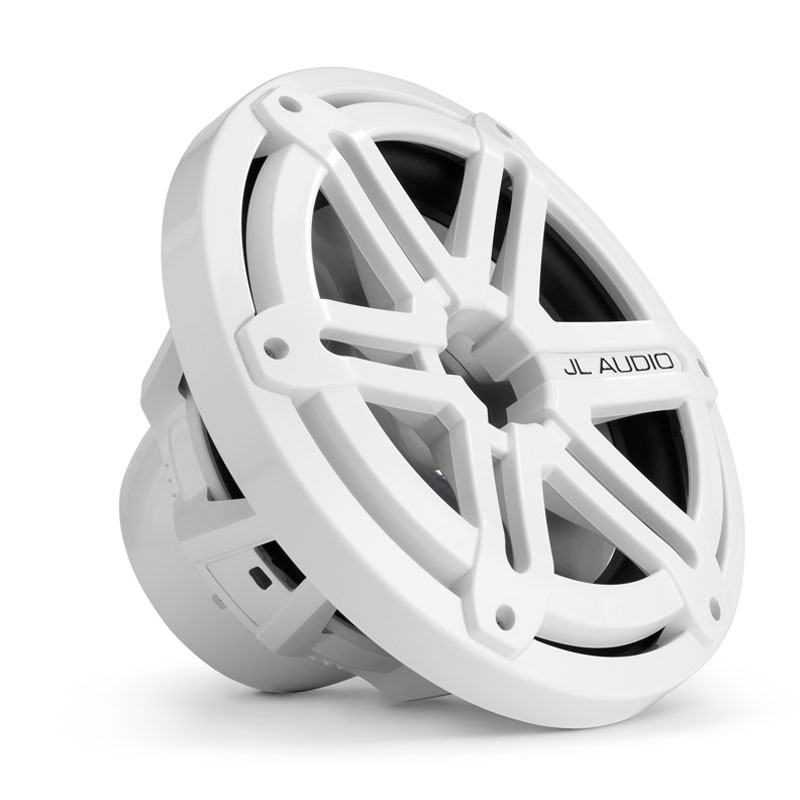

JL Audio MX10
Power Handling
175W RMS
Impedance
4 Ohms
Mounting
Free Air/Infinite Baffle
Features
⬤ Designed for free air/infinite baffle applications
⬤ No need for an enclosure, you can install directly in the hull of the boat
⬤ This subwoofer is designed to withstand the elements of a marine environment
⬤ 5.12" mounting depth

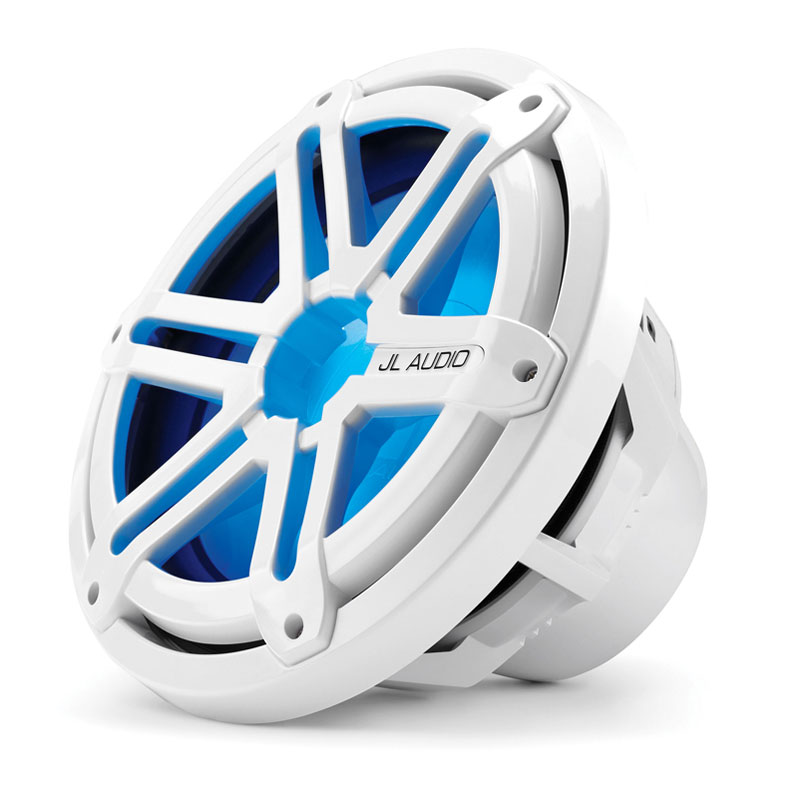

JL Audio MX10 w/ LEDs
Power Handling
175W RMS
Impedance
4 Ohms
Mounting
Free Air/Infinite Baffle
Features
⬤ Exact same subwoofer, but this one has blue LEDs integrated into the grill that illuminate the cone
JL Audio 10" TW3 Enclosure
Power Handling
400W RMS/800W Peak
Impedance
2 Ohms
Dimensions
20.75" (W)x14"(H)x4.5"(D)
Features
⬤ Great subwoofer for the money
⬤ Perfect if you have storage under a seat and your boat doesn't stay on the water during bad weather
⬤ Similar output to the JL W3v3 woofer in a low profile format
⬤ This is not a marine grade woofer. This enclosure needs to stay dry!
Source Units

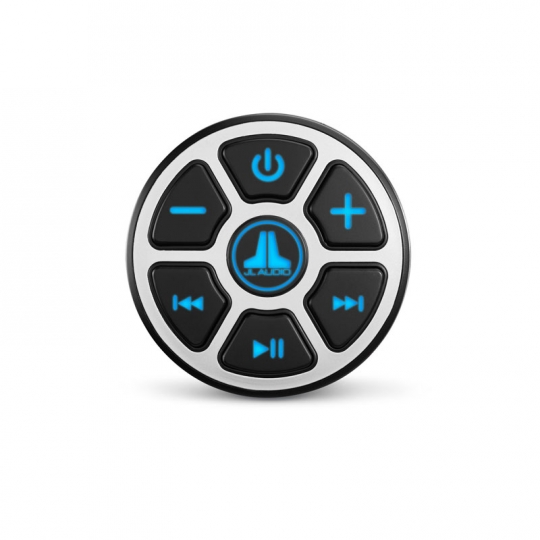

Bluetooth Controller
Power Output
None - Requires Amplifier
Bluetooth
Yes
Sirius XM Ready
No
USB
No
Features
⬤ Small, compact way to play music via Bluetooth from your phone
⬤ Large buttons with blue illumination for easy control while at speed on the water
⬤ Simple 2 wire hookup
⬤ 1.125" mounting holde diameter
⬤ Perfect if you just want to play music from your phone through your amplified stereo system.

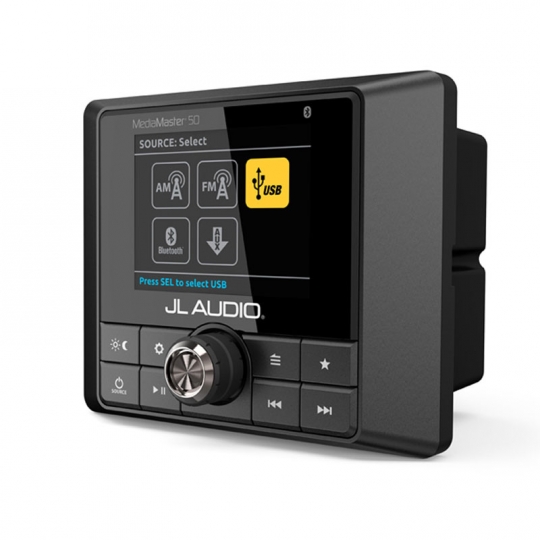

MediaMaster 50
Power Output
25W x 4 RMS @ 4 Ohms
Bluetooth
Yes
Sirius XM Ready
No
USB
Yes
Features
⬤ Digital AM/FM tuner with RDS
⬤ 6 Ch. pre-amp outputs
⬤ 6 Ch. pre-amp outputs
⬤ NMEA 2000 Connectivity
⬤ 2.8" LCD Display with both day and night mode illumination
⬤ Option to control bass, treble, midrange, balance across all zones, or each zone independently

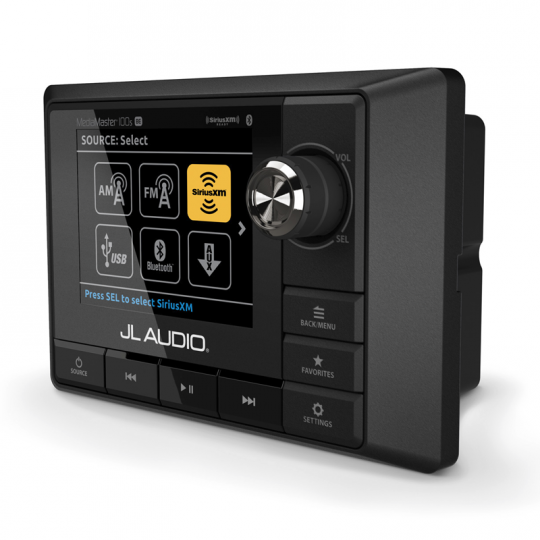

MediaMaster 100
Power Output
None - Requires Amplifier
Bluetooth
Yes
Sirius XM Ready
Yes
USB
Yes
Features
⬤ AM/FM with RDS and Weatherband
⬤ 8 Ch. pre-amp outputs
⬤ NMEA 2000 Connectivity
⬤ 4 configurable, nameable audio zones
⬤ 3.5" LCD display with both day and night mode illumination
⬤ Tone control allows for customization of each zone's bass, trebble, midrange, and balance
