Rockford Fosgate X317-STG6 Can-Am X3 Stereo Package

Description

Rockford Fosgate X317-STG6 is the loudest Can-Am X3 Stereo Kit

Do you want to not only have the best sounding system, but also the loudest system possible in your Can-AM X3?

There's a difference between a stereo that is loud and a stereo that sounds good. Thankfully with the Rockford Fosgate X317-STG6, you get both. The M2-65 front speakers have a 1", PXNX tweeter that delivers the sound quality you expect from a silk-dome tweeter with the volume you expect from a titanium dome tweeter. You get fidelity and volume without sounding harsh. The rear 8" horn-tweeter, cage-mount speakers are incredible with melt-your-face-off volume capability. You get two subwoofers to install under each of the front seats, a head unit to control everything, and a plug & play harness to connect and power everything, including the RGB LEDs. With the X317-STG6, Rockford Fosgate has taken Can-Am X3 audio to another level.

What's Included?

Rockford Fosgate X317-STG6 Kit Components

PMX-3 Head Unit
Can-Am X3 Dash Kit for the PMX-3
(1) Pr. Rockford Fosgate M2-65B 6.5" Marine Speakers
(1) Pr. Rockford Fosgate Can-Am X3 Dash-Mount Speaker Pods
(1) Pr. Rockford Fosgate M2WL-8HB 8" Horn Tweeter Tower Speakers
(2) Rockford Fosgate Can-Am X3 M2 10" Loaded Subwoofer Enclosures
(1) Rockford Fosgate M5-1500X5 1500W 5 Channel Marine Amplifier
(1) Rockford Fosgate PMX-RGB RGB LED Controller
(1) Rockford Fosgate Can-Am X3 Plug-and-Play Wiring Harness w/ Color Optix RGB LED Cable Integrated
(1) Rockford Fosgate Can-Am X3 Rear Speaker Add-On Harness w/ Color Optix RGB LED Cables Integrated

Front Speakers

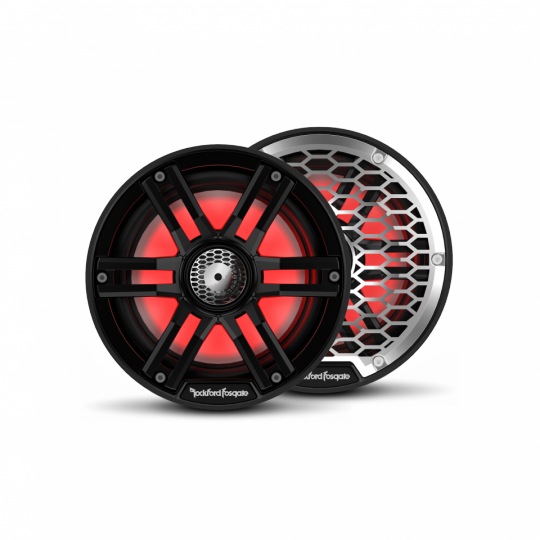

The Rockford Fosgate front speakers are the M2-65B, 6.5" marine speakers with Color Optix RGB LEDs. These speakers handle 150 watts RMS and are among the most efficient 6.5" marine speakers you can buy. The PXNX tweeter is proprietary to Rockford and they won't say what it is other than, "It has the sound quality of a silk-dome tweeter with the volume of a titanium dome tweeter." These speakers are not just the old Punch marine speakers with lights. Rockford Fosgate completely re-designed these marine speakers to deliver maximum clarity and sound quality.

The speakers come with Rockford's Color Optix RGB LEDs. The wiring for both the speakers and the LEDs is integrated into the wiring harness and allows for plug-and-play installation like you expect from Rockford Fosgate. You don't have to cut, crimp, splice, terminate, etc. You plug the RGB LED plug into the speaker at one end, and you plug the other end of the cable into the PMX-RGB LED controller that is included with the kit. You control the color and mode of the RGB LEDs with the RF connect app on your iPhone or Android device. Simply download the app and connect to the controller via Bluetooth.

The M2-65B speakers also include two styles of grilles, both are black. You get the iconic, Rockford Fosgate stainless steel mesh grilles as well as the open-style, dual-six spoke grilles that are similar to most other marine speakers.

M2-65B Specs

150W RMS Power Handling
91.8 dB @ 1W/1M Sensitivity Rating
40 Hz - 24 kHz Frequency Response
Color Optix RGB LEDs
1" PXNX Tweeter
Includes both Standard and Stainless Mesh Speaker Grilles
Dash Mount Speaker Pods Included

Rear Speakers

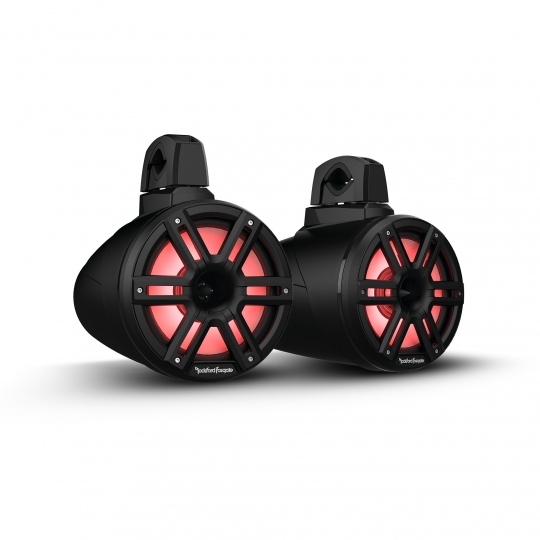

The rear speakers is where the X317-STG6 takes it to a whole other level compared to the previous generation Stage 5 and the X317-STG5. The Rockford Fosgate M2WL-8HB 8-inch horn-tweeter tower speakers are insane. Regular, coaxial speakers can't hold a torch to the volume you get from the horn tweeter. The horn tweeters are designed for maximum distance and volume and they deliver. The tower speakers come with Rockford's Color Optix RGB LEDs integrated into the front of the speaker and also have a 360-spinning "Diamond R" logo on the back that illuminates with RGB LEDs to match the color on the front of the speaker. You can index the logo on the rear so that it is "straight-up-and-down," regardless of the mounting angle. These rear cage mounted speakers blow away the 6.5" rear speakers in the X317-STG5. It's not even a fair comparison.

M2WL-8HB Specs

300W RMS Power Handling
94 dB @ 1W/1M Sensitivity Rating
20 Hz - 25 kHz Frequency Response
Color Optix RGB LEDs
1" Horn Tweeter
Includes both Standard and Stainless Mesh Speaker Grilles
Clamps Included
360-degree, Clockable Color Optix LED Diamond R Logo on the Rear
Includes Rear Speaker Harness w/ Color Optix RGB LED Power & Control Cables

Amplifier

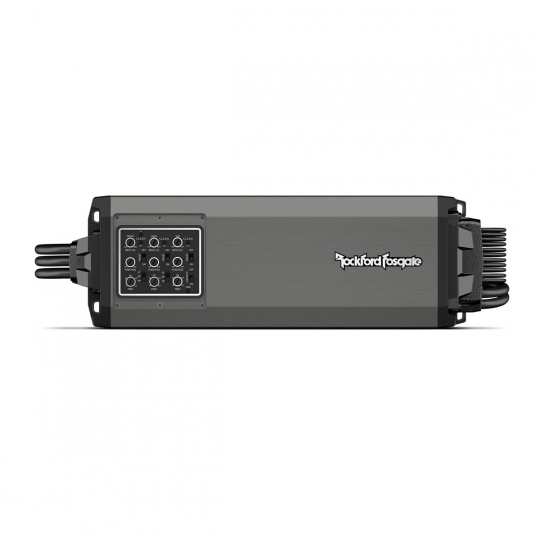

The amplifier in the Rockford Fosgate X317-STG6 is the M5-1500X5. This is a compact, 1500 watt, 5-channel amplifier that delivers tons of power for both the speakers and the subwoofer. The M5-1500X5 is certified at 100W x 4 + 400W x 1 @ 4 ohms, and has a dynamic power rating of 125W x 4 + 400W x 1 @ 4 ohms. The dynamic rating is a true, real-world rating when play music, not just sitting on a test best. The M5-1500X5 is IPX6 rated which means that you can spray it down with a hose and it can get yet, you just can't submerge the amplifier.

The real advantage of the M5-1500X5 in the UTV kits is the pre-set switches. You no longer have to worry about tuning the amplifier. Rockford Fosgate has developed pre-set switches on the amplifier to automatically set the gains and crossovers at the ideal settings to optimize the sound quality of your Can-Am X3 stereo system. Simply set the pre-set switches to "On" and you are good to go.

M5-1500X5 Specs

125W x 4 @ 4 Ohms Dynamic Rating (Speakers)
700W x 1 @ 2 Ohms Dynamic Rating (Subwoofers)
UTV Kit Specific Presets for Gains & Crossovers
LED Clipping Indicators
IPX6 Rated
10 Hz - 50 kHz Frequency Response
12dB/Octave Crossovers
Plug & Play with the Included Harness

Subwoofers

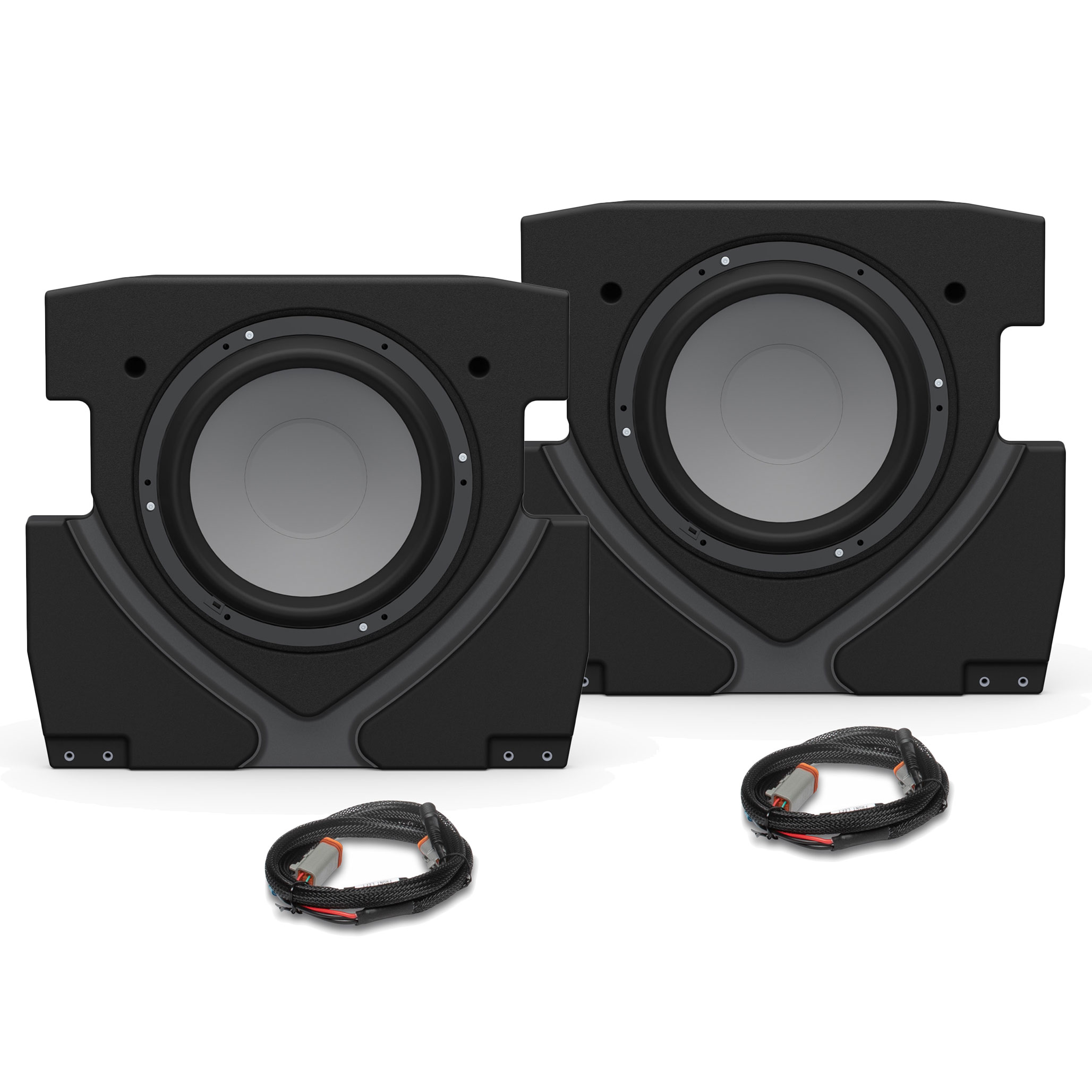

This X317-STG6 kit includes two, under-the-seat subwoofers. Each subwoofer comes as a loaded enclosure with a 10 inch M2D2-10B subwoofer. The subwoofer enclosures feature a down-firing design to maximize output. The enclosures also allow for full, up, and down travel using the seat adjustment feature. Each 10-inch M2 subwoofer can handle 400 watts RMS. This is twice the amount of constant power that the previous subwoofer could handle. The enclosure design works under either seat. You don't need to worry about which one is for the driver's side and which one is for the passenger's side. Since the subwoofer comes pre-installed in the box, you don't need to worry about wiring the voice coils to the proper impedance. Also, this ensures that you get a good seal between the subwoofer basket and the enclosure. Bolt the subwoofers down using the factory attachment points, plug them in, and you are good to go.

Although the 10" M2D2-10B subwoofers come with the Color Optix RGB LEDs, they are not on the subwoofer because the grilles are not used. With the down-firing design, you wouldn't see the lights and the grilles would not fit.

X317-M2FWE Specs

2 Loaded Enclosures Included
M2D2-10IB Subwoofer Included
400W RMS Power Handling
Works with Seat in the Lowest Position
Fits Under Either Driver or Passenger Seat
Suspended Mounting Design Allows for a Down-Firing Subwoofer
Stealth Install Once Mounted
Roto-mold Design for Lightweigth & Durable Construction
Direct bolt-in Design Using OEM Mounting Holes
Color Optix LEDs are Not Used Due to Lack of Grille and Down-Firing Design

Head Unit & Dash Kit

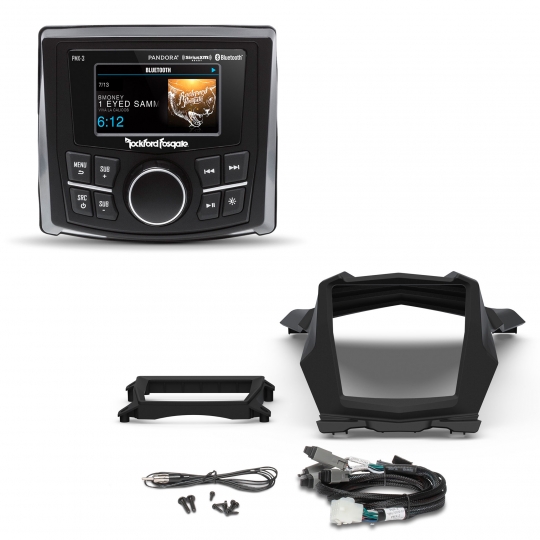

Rockford Fosgate X317-STG6 Head Unit & Dash Speakers

This kit includes a PMX-3 marine head unit and the Rockford Fosgate X3 dash kit. The two combine to provide an OEM quality appearance in your dash. They also provide a user-friendly interface to control your stereo system. The PMX-3 head unit offers everything you could want from a UTV head unit. The PMX-3 comes with an AM/FM/WB tuner, Bluetooth, USB, AUX, and it is SiriusXM ready. Also, the PMX-3 has a video input and a reverse trigger wire which allows you to install a backup camera. The backup camera option is especially nice if you use harnesses and you're strapped in. Looking over your shoulder isn't easy. The PMX-3 has a full color, 2.7" TFT display and has an easy-to-use volume knob that is large enough to control while wearing gloves. The front of the unit has push-button subwoofer control to quickly adjust bass levels depending on the song and recording.

PMX-3 + Dash Kit Specs

2.7" Full Color TFT Display
Sirius XM Ready
Bluetooth
USB
AM/FM Tuner
AUX
Subwoofer Level Control Button on the Front of the Radio
Made for Apple Certified
Integrated Voltage Gauge w/ Low Voltage Alert
Installs with the X3 Dash Kit for OEM Fit & Finish
Backup Camera Input w/ Reverse Trigger Wire

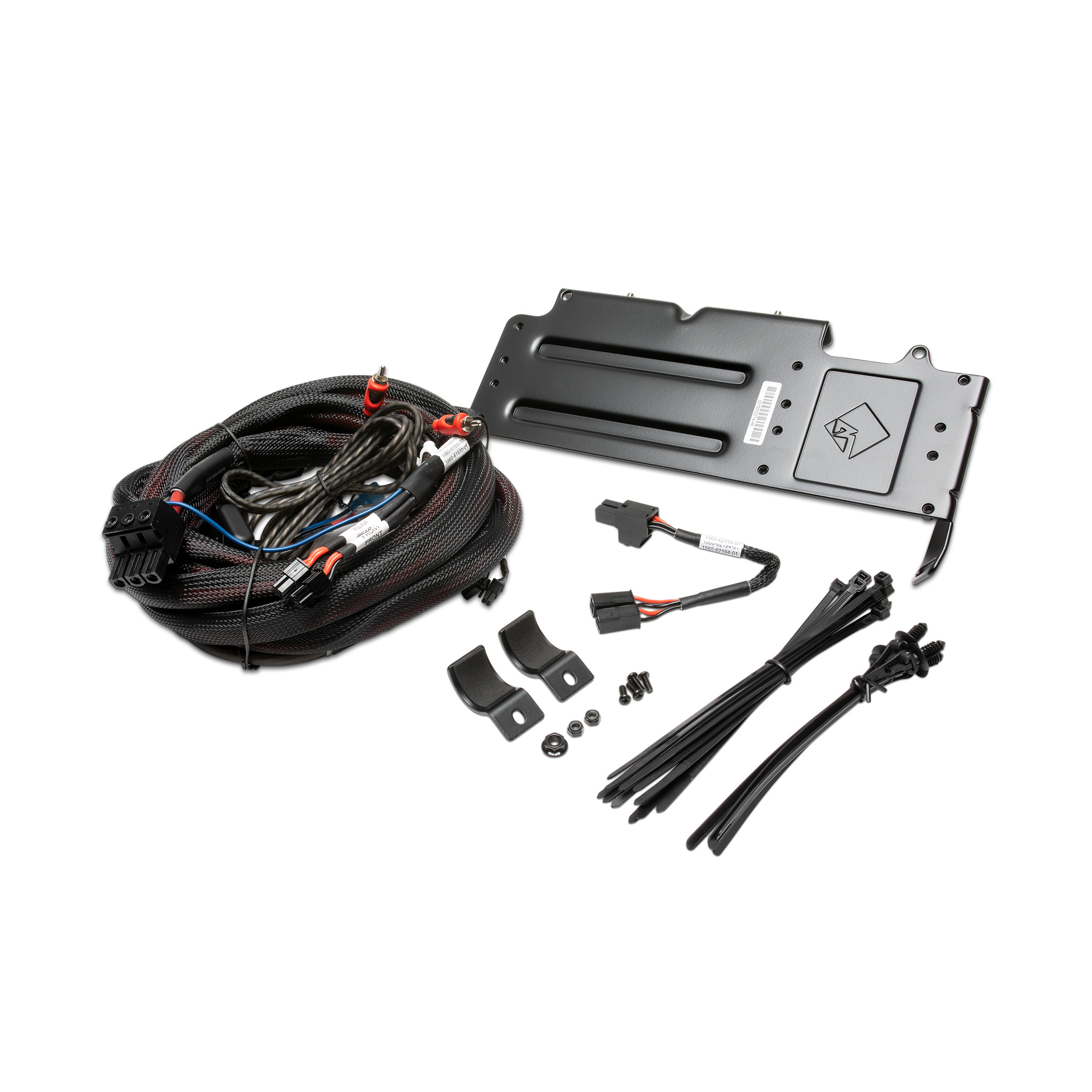

Harness + Amp Mounting Plate

Rockford Fosgate updated the X317-STG6 and it now has the connections for the Color Optix RGB LEDs. The harness allows for everything to be plug and play. There is no cutting, stripping, splicing, crimping, twisting, soldering, or taping required. The harness for the cage-mounted speakers plugs into the main harness and works for both 2-seat and 4-seat vehicles.

Harness + Amp Plate Specs

Complete Plug & Play Design
Works With both 2 & 4 Seat Vehicles
Direct Fit, Amp Mounting Plate Included
PMX-RGB Color Optix RGB LED Controller Included
Contains All Connections for Both Audio & RGB LED Power & Control
No Cutting, Stripping, Soldering, Crimping, Taping, etc.
Neatly Loomed for OEM Quality Appearance

Fitment

Maverick X3 Turbo - 2017-2021
Maverick X3 Turbo R - 2018-2021
Maverick X3 DS Turbo - 2018-2021
Maverick X3 DS Turbo R - 2018-2021
Maverick X3 X DS Turbo RR - 2018-2021
Maverick X3 RS Turbo R - 2017-2021
Maverick X3 RS Turbo - 2017-2021
Maverick X3 X RS Turbo RR - 2017-2021
Maverick X3 X MR Turbo² - 2018-2021
Maverick X3 X MR Turbo RR² - 2018-2021
Maverick X3 X RC Turbo - 2018-2021
Maverick X3 X RC Turbo RR¹ - 2018-2021
Maverick X3 MAX Turbo - 2017-2021
Maverick X3 MAX Turbo R - 2017-2021
Maverick X3 MAX DS Turbo - 2018-2021
Maverick X3 MAX DS Turbo R - 2017-2021
Maverick X3 MAX DS Turbo RR - 2018-2021
Maverick X3 MAX RS Turbo R - 2017-2021
Maverick X3 MAX RS Turbo RR - 2018-2021
Maverick X3 MAX MR Turbo RR² - 2018-2021

¹ Front Speakers require removal and reinstallation of Intrusion Bar. Please allow for extra installation time.
² Snorkel obstruction prevents rear speakers from being mounted inside roll-cage. If mounting outside roll-cage, use caution as these can be damaged by tree branches and pedestrians.

Installation Video

ColorOptix RGB LED Overview

Frequently Asked Questions

Can I Install the X317-STG6 myself?

Do I need to modify my Can-Am X3 to make this fit?

How Do the Color Optix RGB LEDs work?

Are the horn tweeter, 8" can speakers that much louder than the 6.5" cans on the X317-STG5?

How does this compre to other X3 stereo kits?

What if I want more bass than the just the two subwoofers?

Is an AM/F< antenna included?
